directional antenna cell phone jammer antenna from China manufacturer

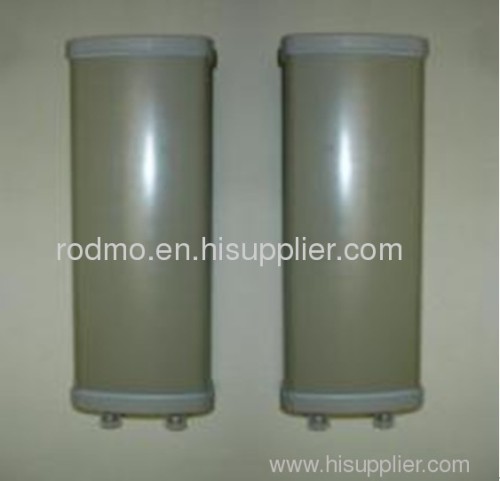

directional antenna cell phone jammer antenna

Payment Terms:	T/T,L/C,D/P,WU
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RD-AN201

Production Capacity: 5000 per month

Delivery Date: depend on order quantity

Brand Name: RODMO

Means of Transport: Air

Packing: standard export packing

Type: Indoor

Frequency Range: GSM/CDMA/DCS/3G

Directional antenna is an antenna which radiates greater power in one or more directions allowing for increased performance on transmiting and receivi

Features:

Directional antenna is an antenna which radiates greater power in one or more directions allowing for increased performance on transmit and receive and reduced interference from unwanted sources. Directional antennas like yagi antennas provide increased performance over dipole antennas when a greater concentration of radiation in a certain direction is desired.

Specification:

Model	RD-AN201 (low power)
Frequency Range	F1: 800MHz & 1900MHz F2: 900MHz & 1800MHz
Gain	8 dBi (800MHz & 900MHz) 9 dBi (1800MHz & 1900MHz)
VSWR	≤1.5
(3dB)HPBW	85°H-plane 55°E-plane (800MHz & 900MHz) 60°H-plane 55°E-plane (1800MHz & 1900MHz)
Polarization	Vertical Polarization
Input Impedance	50(Ω)
Type of Port	SMA
Height/width/Depth	35016555mm (per unit) one set with two units
Weight	1.5kg (each unit) 3.5KG/set
